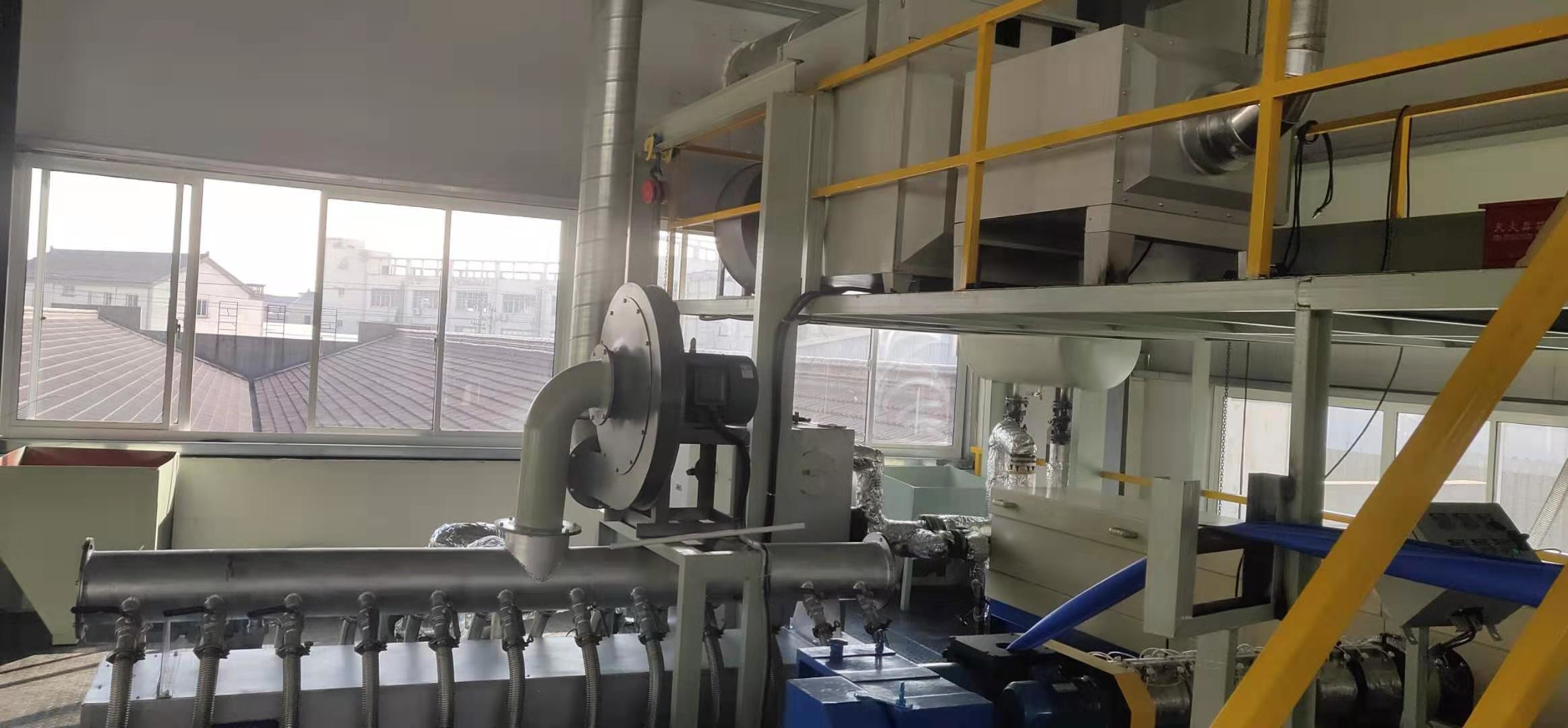

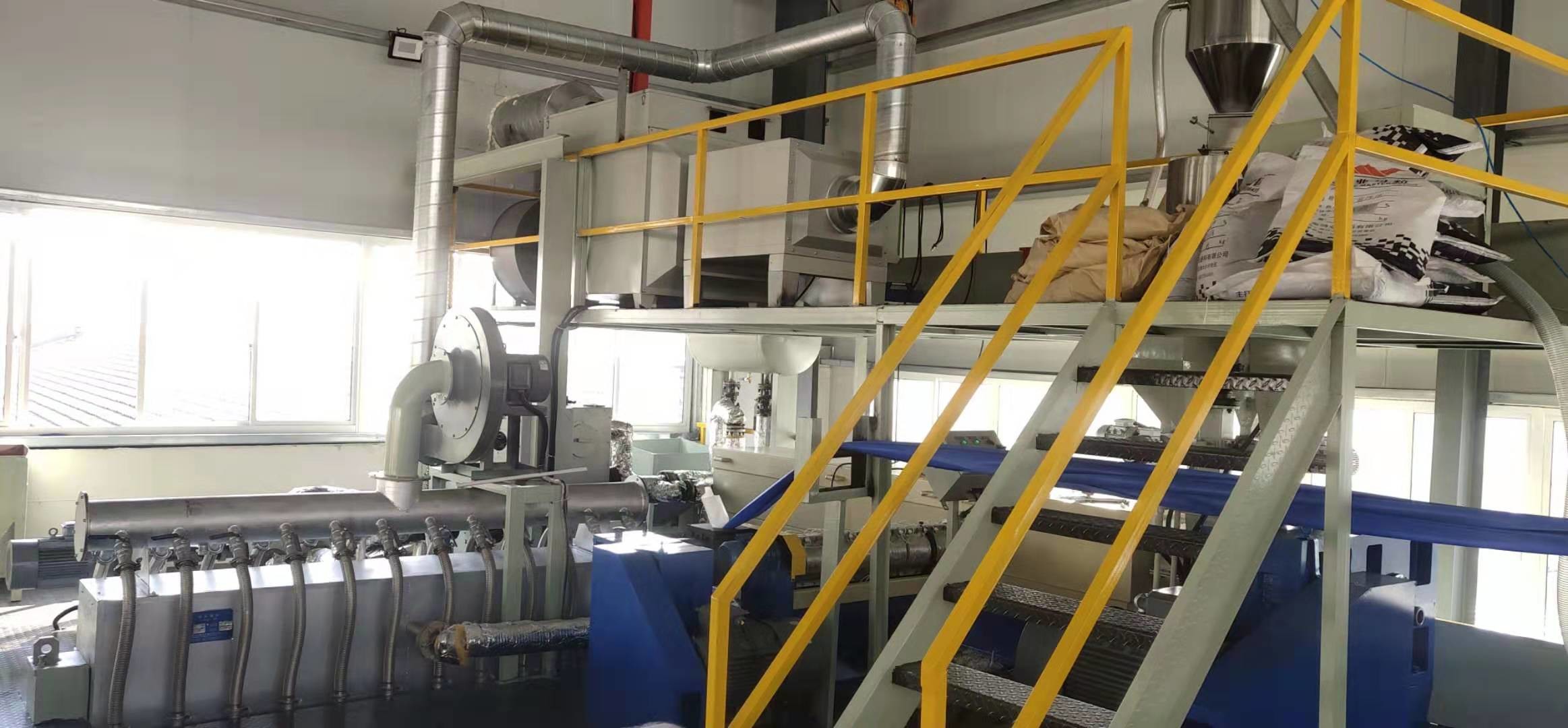

Uniform Coverage PP Spunbond Nonwoven Fabric Making Machine For Medical Protection

Produkt-Beschreibung

Hot Sale Width1.6m to 3.2m SS SSS PP Spunbond NonVwoven Fabric Making Machine For Surgical Gown



Product Application



The high-yield 1600mm stainless steel PP spunbonded non-woven fabric production line produces polypropylene (PP) non-woven fabric. Polypropylene spunbonded non-woven fabric is made of air traction negative pressure net technology. The product has the characteristics of uniform coverage, high strength, good air permeability and good hand feeling. It is widely used in medical protection products, household and hotel facade beauty disposable products, agricultural covers, clothing packaging and construction.









Width	1600 MM
Gsm	9 - 120 gsm
Output per day	8 - 10.5 Ton
Machine Speed	≦ 350 m / min
Transformer	≈ 400 KVA
Power Consumption	650º - 800º / Ton
Machine Size	45 * 15 *12 M



Technical Advantages



1) The whole line is well-structured and easy to operate.
2) The whole line is highly automated.
3) Control elements are of well-know make, high performance and reliable technologies.
4) The whole line are controlled by PLC and operated with touch-screen.

5) The allocation of the main frame and auxiliary equipment can be special designed and adjusted according to customers requirement.



Description Of Non-woven Machine



1) Parts of spunbonded nonwoven fabric production line:

Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter

2) Spunbonded process and technical flow chart:

Additive(Recycling off-cut fabric)---->Raw material----> Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final





Main parts of spunbond making machine





Extrusion Machine

Aperture:90 300kg/h 1pc;

Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;



Meltblown die head assembly

maximum temperature: 300.;

Max.output:200kg/h;

Heating zone:8tod;

Perforated length:3,350mm;

HPI:40;

1 Sets L/D=10; Number of holes:5.276;

Capillary diameter:0.3mm;

Capillary length:3,600mm;





Automatic Winding Machine

Effective width:1600/2400/3200 mm Rolling Speed:200-400M/Minute Rolling Diameter:2000 mm Original: CHINA





Production Line Control Cabinet

Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;



Precisely CNC center hold machining parts beyond customer require.









Exhibition Show with customer









Packaging Details

Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.







FAQ



1. Q:How long will your engineer reach our factory?

A:Within one week after everything ready (machine arrival your factory, non woven material, power source, air compressor etc.Prepared)

2. Q:Does your engineer understand English?

A:Our engineers understand a little English. All our engineers have more than five years machine installation experience.

3. Q:What should we charge for your engineer?

A:You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 800CNY one day per person.

4. Q:How many days it will take for the intallation?

A: It will take around 45 days, depends on the machine type.

5. Q:How do we solve the machine problem after your engineer leaving?

A:Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.
